Munkedal Railway´s class Co

Back

Model features
* Etched brass kit in 1:45 scale for 12,7mm gauge
* Bogie sides and some other details cast in brass
* NorthWest Short Line wheel sets
* Kadee couplers included
* Extensive assembly instructions in English
* Bill of Material

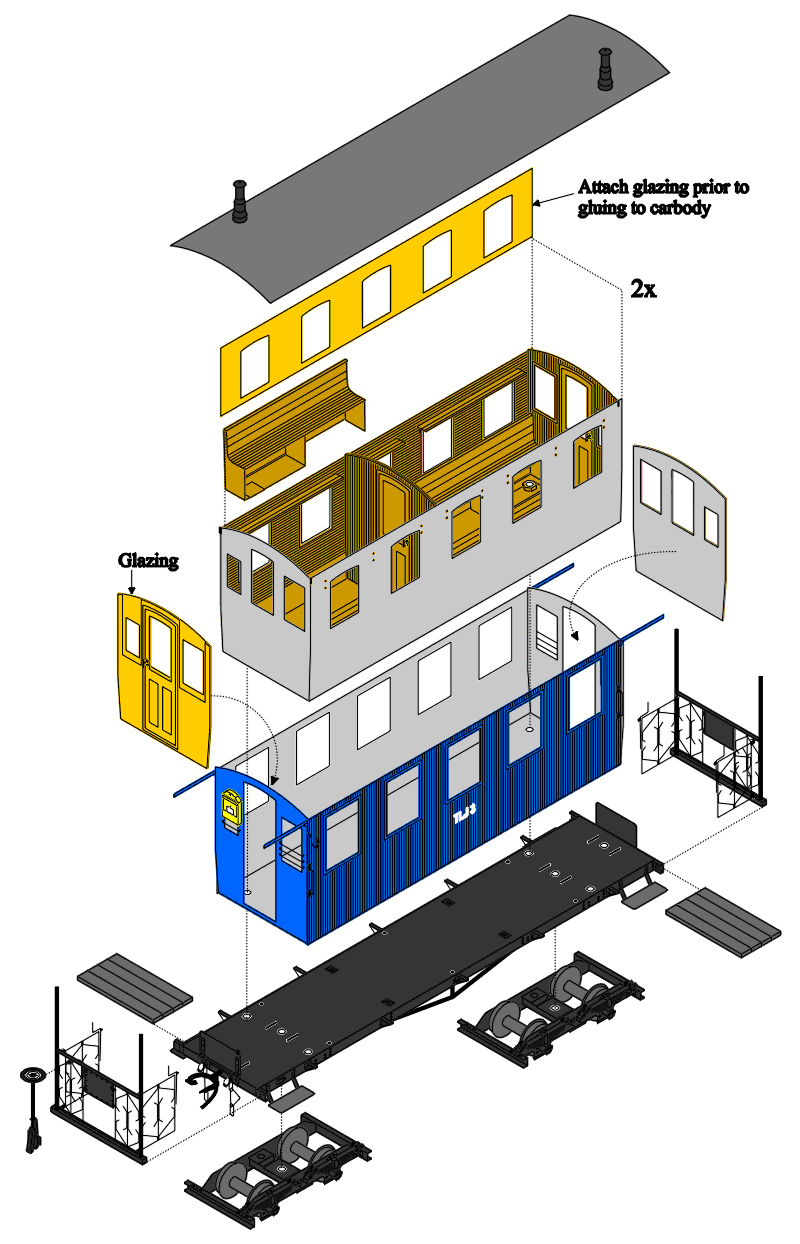

* Exploded views (1, 2, 3, 4, 5, 6, 7, 8, 9, 10)
* Etch identification (1, 2)

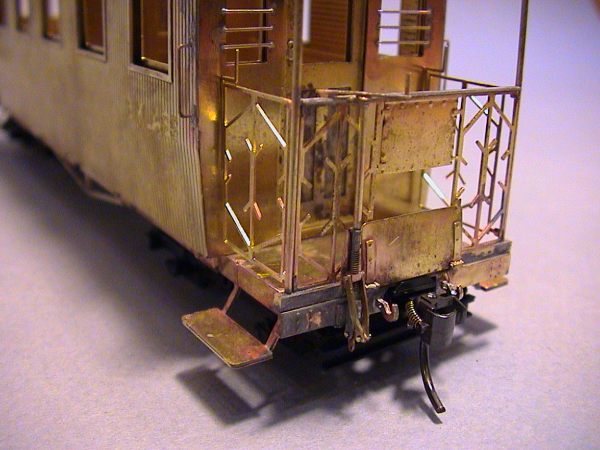

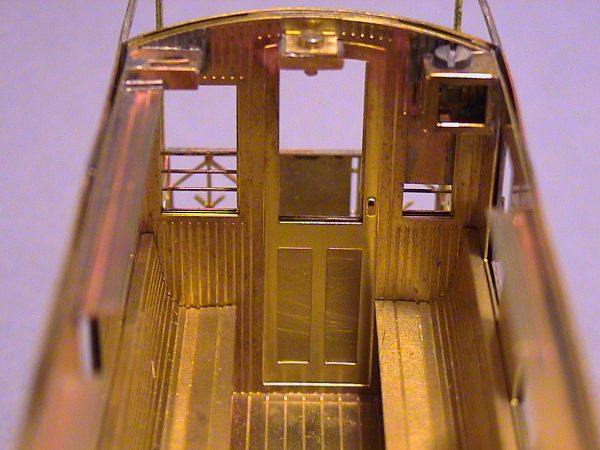

* Pilot model assembly pictures

Price: 1400 SEK (Swedish Krona)

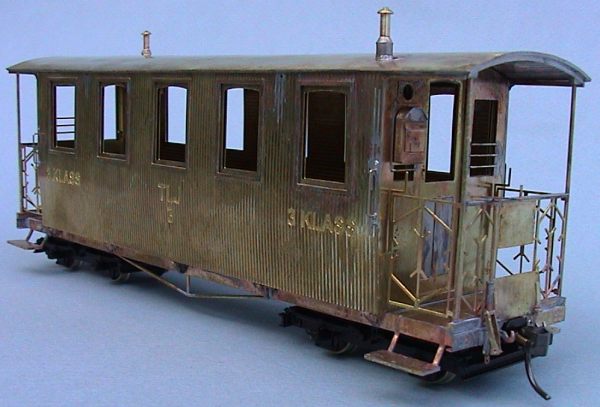

The photo above shows the pilot model.

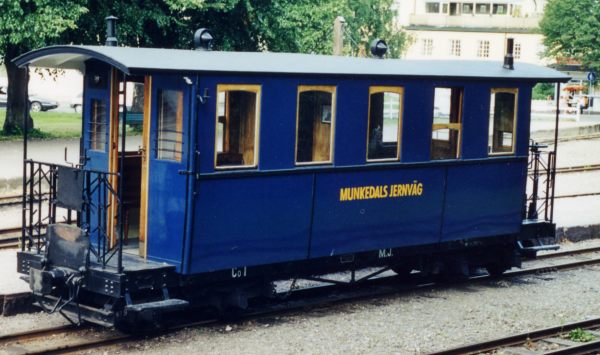

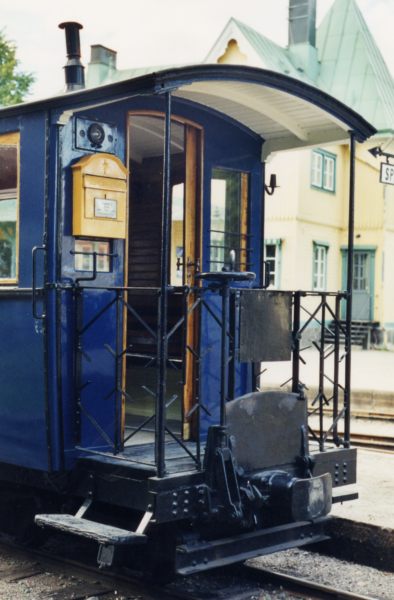

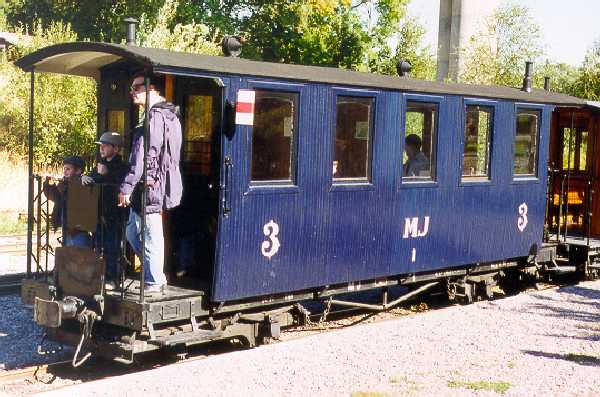

Prototype information
The coach was delivered by VABIS in Södertälje to Munkedals Railway in 1895. It had room for 24 sitting passangers. The total length is 7m and the bogie pivot distance is 4,8m. It is basically a short version (7 instead of 10m) of the standard design for Swedish 600mm coaches.

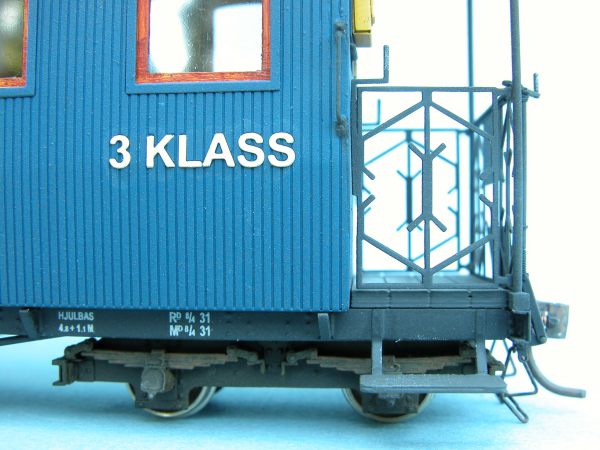

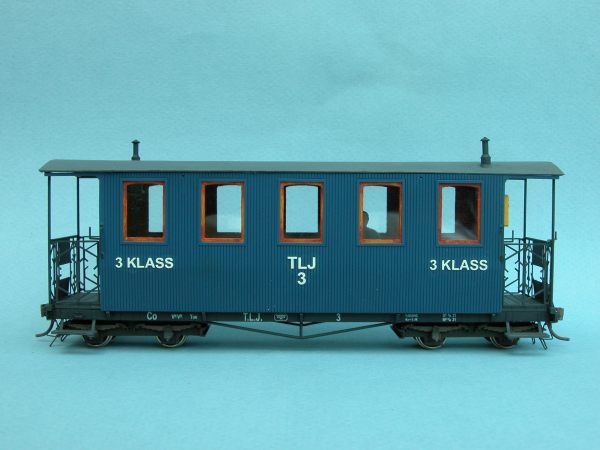

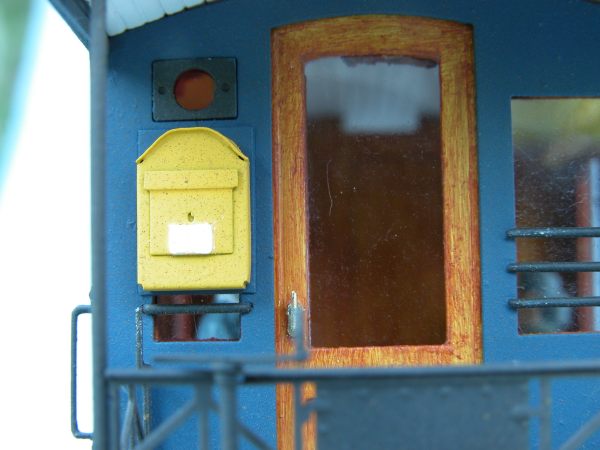

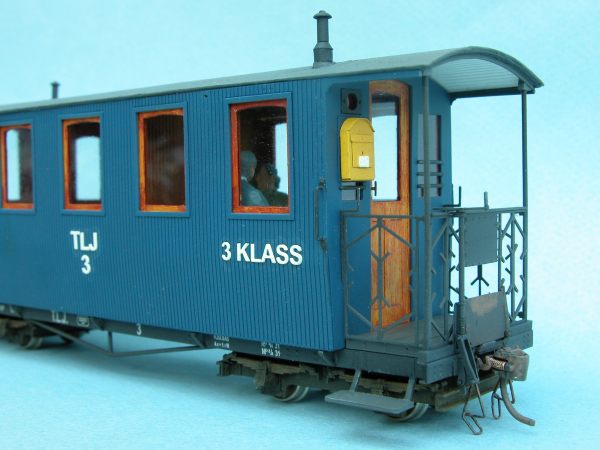

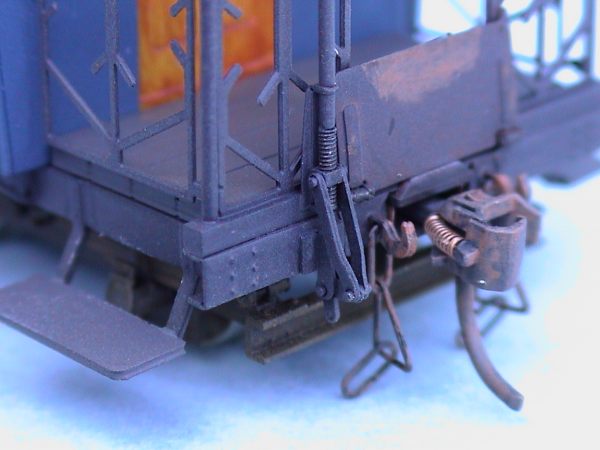

The painted pilot model. To the left the parts for a split frame bogie (not included).

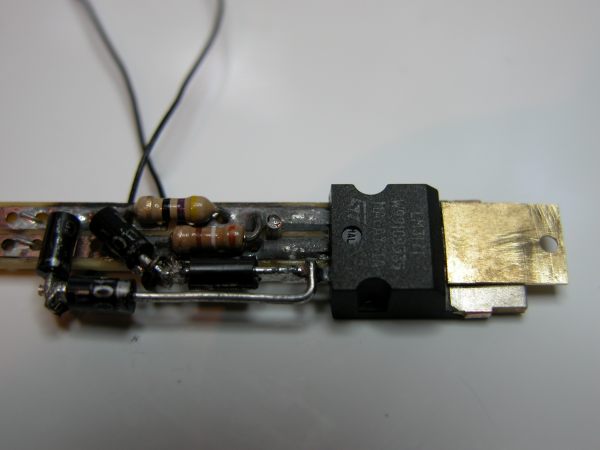

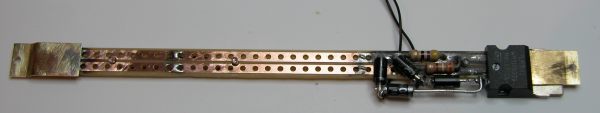

The interior illumination built around an LM317 with 3+2 x 1,4V lamps (not included).
